Wireless

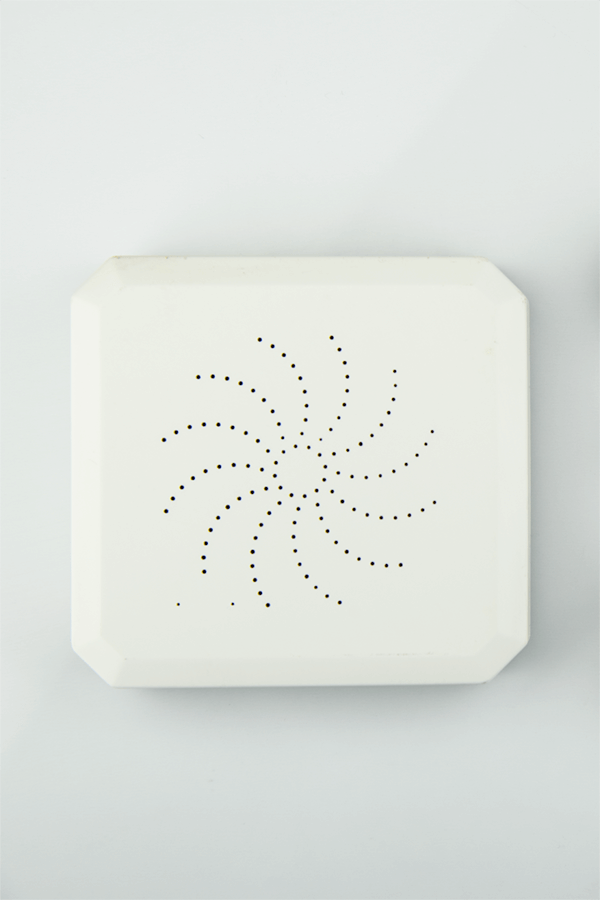

Zigbee Gateway

  • Supports Zigbee 3.0 protocol to add Zigbee sub-devices.
  • Under normal operating conditions, short press the button ≥10times in 10 seconds, to enter engineering mode.
  • Supports automatic upgrades remotely and selective upgrade by APP.
  • Press the button shortly (≤5 seconds) enter long network configuration mode, the indicator keeps flashing.
  • No wiring installation, just attach and go.



Private File - Access Forbidden
Category:

Additional information

Main Frequency

400MHz
Chip Architecture

MIPS
Operating System

Linux 3.10
Flash

128Mbit
DDR

256Mbit
USB

1*USB Host/Device, 1*USB PHY
WAN

1*10/100M (RJ45 interface)
Frequency Range

2.4 ~ 2.485GHz IEEE 802.15.4
Timer

2* hardware timers, 1* watchdog timer
Indicator Light

1* driver indicator, 1* network indicator
Button

1* reset button
Driver

110V ~ 240V AC, 5V/1A DC
Operating Temperature

-10-55°C
Operating Humidity

10% – 90% RH (no condensation)
Storage Temperature

-20 -60°C
Storage Humidity

5% – 90% RH (no condensation)
