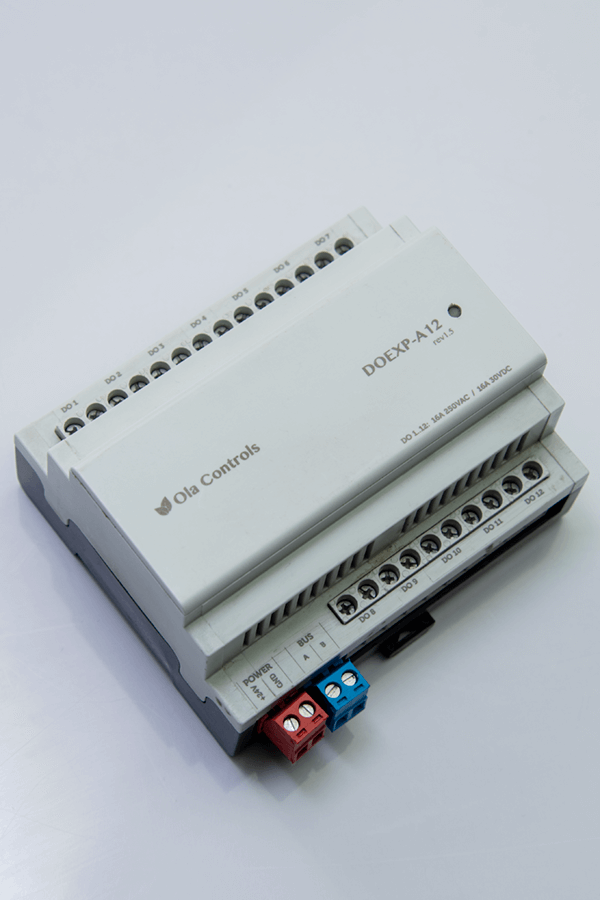

Digital Output Expansion Module DOEXP-A12 rev1.6

A universal extension module for digital outputs has 12 powerful 16A relays. Each output channel could be configured separately for any purpose (lights, A/C fan, Actuator, Blinds …etc) eliminating the need for different modules for A/C or shutters, which makes this module very cost-effective.



Private File - Access Forbidden
Category:

Description

  • 12 relay outputs, 16A, inrush current 500A/2ms
  • Relay lifetime: 100 000 cycles under maximum load,
    2 000 000 cycles under average load.
  • Maximum total load 70A Output configurations:
  • Standalone switched output
  • AC blinds motor with internal blocking of both outputs
  • Energy consumption when relays open: 1W
  • Energy consumption when relays closed: 6W
  • Power supply 24VDC
  • Protection: IP20, Operating temperature: 0°C to 40°C
  • DIN rail, 6 modules. Width 107 mm, height 59 mm.
  • The manufacturing process is certified under TÜV SÜD ISO 9001:2000.
