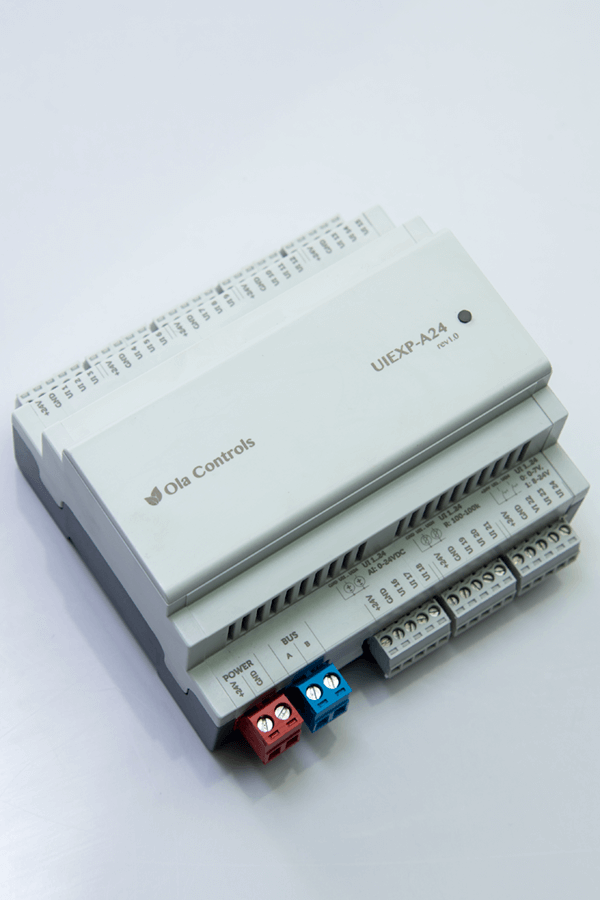

Universal Input Module UIEXP-A24 v1.0

A universal extension module for all kinds of inputs, It has 24 channels & each channel could be configured separately as NTC temperature sensor input, Reed switch, push-button, impulse counter or 0-10v Analog input.



Private File - Access Forbidden
Category:

Description

  • 24 universal inputs configurable for:
  • NTC temperature inputs with a resistance measurement range 100Ohm – 100kOhm +-50Ohm
  • Push-button inputs
  • Reed/status inputs
  • Impulse counter inputs, frequency 200Hz per channel, sample rate 400Hz per channel, pulse on-time > 2.5 milliseconds
  • Analog inputs 0-10V with voltage measurement range 0-26VDC, single-ended type, resolution 12bits, accuracy 0.1% of full scale, input impedance >16kOhm, normal mode rejection 50dB at 60Hz, conversion time 1250 milliseconds
  • For analogue input 4-20mA using an external resistor
  • Log0: 0-7V, log1: 8-24V
  • Power supply 24VDC
  • Energy consumption 1W
  • Protection IP20, operating temperature: 0 to + 55 ° C
  • DIN rail, 6 modules. Width 107 mm, height 59 mm.
  • The manufacturing process is certified under TÜV SÜD ISO 9001:2000
