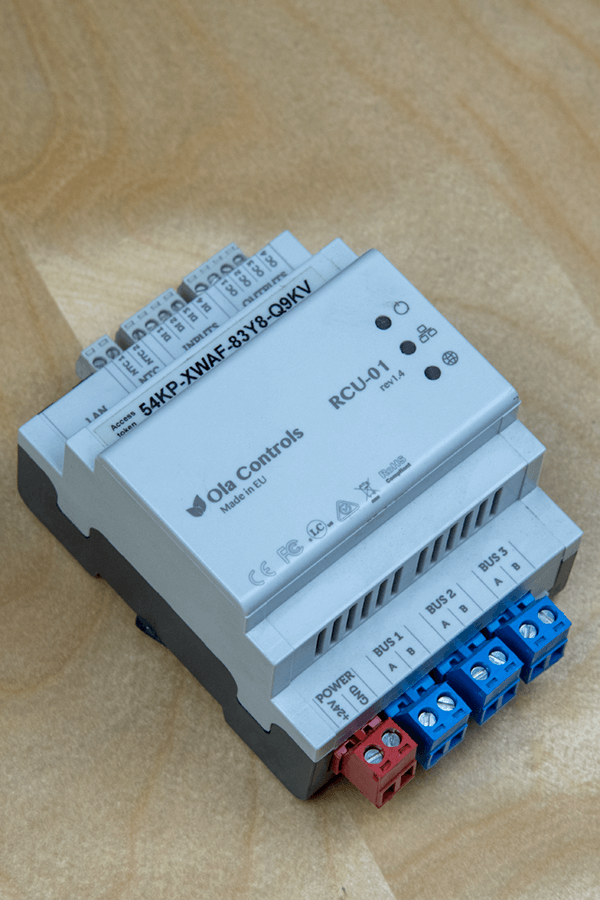

Room Control Unit (RCU-01 v1.4)

The central controller in Ola Controls modular system. RCU-01 is a small Linux computer capable of implementing complex control functions. When connected to the cloud, automatic backups, cloud trending, and remote management are available. Bus terminals 1,2,3 could be configured to connect Ola extension modules, RS485, or Modbus RTU systems. Modbus TCP is available via LAN connection.



Private File - Access Forbidden
Category:

Description

  • Lan connection (controller still works without LAN)
  • Optional free cloud backend
  • 3 universal bus terminals
  • Ola extension modules. One terminal can handle a maximum of 32 bus modules
  • RS485 third-party devices, e.g. an alarm system
  • Modbus RTU for 3rd party systems or devices
  • 2 NTC temperature sensors inputs
  • 4 digital inputs for switch input, reed contact input or impulse counter input with frequency 100Hz per channel, sample rate 200Hz per channel, pulse on-time >5ms
  • 4 open collector outputs to be used with thermoelectric valves or separate relays, max 0.6A at 30VDC for each output. For example, each output can switch four 24VDC 3W thermoelectric valves.
  • Energy consumption 7W
  • Operating temperature: 0 – 55°C
  • DIN rail, 4 modules. Width 72mm, height 59mm
  • The manufacturing process is certified under TÜV SÜD ISO 9001:2000
